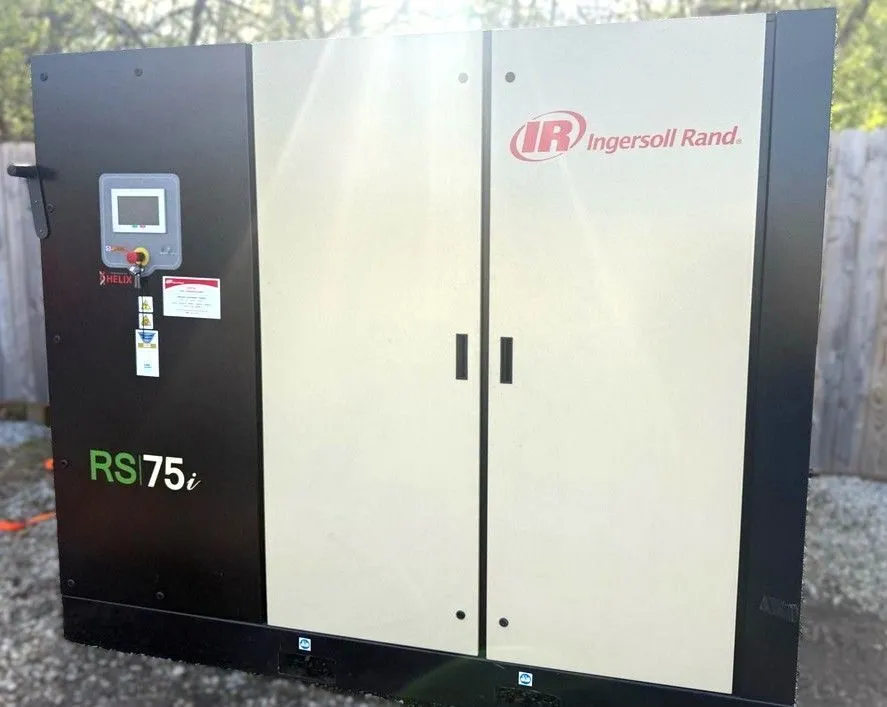

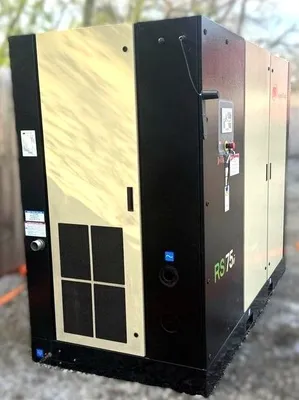

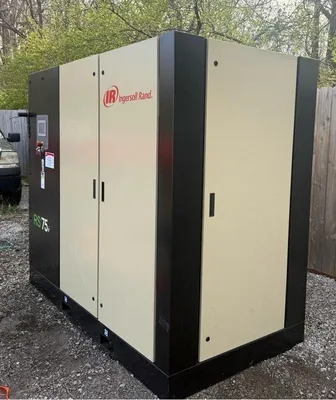

2025 INGERSOLL RAND RS75I-A125 AIR COMPRESSOR LOW HOURS, 460V 3 PHASE BROCHURE ATTACHED
Or as low as $930.00 USD/month over 60 months
Or as low as $930.00 USD/month over 60 months
DON'T MISS THJIS LOW HOUR COMPRESSOR 460V 3 PHASE
Oil-Flooded Rotary Screw Air Compressors
Ingersoll Rand oil-flooded rotary screw air compressors deliver efficiency and reliability for industrial operations. Our screw compressors, also known as rotary compressors, provide a continuous air supply for demanding environments.
Efficient Design: Time-proven airends, a sequential cooling system, and an optional Energy Recovery
System (ERS) significantly improves efficiency.
Remote Intelligent Control: Xe-Series controller delivers increased control functionality through an intuitive user interface and remote access with any common, current web browser.
Leak-free Design: V-Shield Technology provides a totally integrated, leak-free design featuring PTFE stainless steel braided oil hoses and O-ring face seals.
Reduced Downtime: Progressive Adaptive Control (PAC™) monitors key operating parameters and continuously adapts to prevent unexpected downtime.
Decrease Energy Use: NEMA Premium® efficiency motor delivers significant energy savings, and the variable speed drive (VSD) further decreases energy demand.
Flexible Design Options: Air-cooled, water-cooled, and harsh environment options (low and high ambient, outside operation) are available to best match your operating requirements.
Intelligent Uptime: Integrated with Helix™ Connected Platform, a state-of-the-art system that gives you real-time insights and data to keep your compressor operating at peak performance and reduce the risk of downtime.
Specifications
ey Performance Data
Nominal Power: 75 kW (100 HP)
Flow (Free Air Delivery): 14.1 m³/min (499 CFM) at max pressure
Max Rated Discharge Pressure: 8.6 bar (125 psi)
Main Motor Efficiency: ~95.4%
Air End Rotor Speed: 2295 RPM (tip speed 23.31 m/s)
Full Load Shaft Power: ~79.1 kW
Cooling: Air‑cooled (oil cooler + aftercooler)
Noise Level (Air‑Cooled Standard Package): 69 dB(A) sound pressure, 87 dB(A) sound power
Coolant Capacity: 45 liters (11.9 US gal)
Cooling Air Temp Rise: ~8.0 °C (14 °F) at max ambient & discharge pressure
Dimensions & Weight
L × W × H: (95.8″ × 49.2″ × 80″)
Net Weight: 4325 lbs
Electrical & Mechanical
Voltage: 230 V AC (60 Hz) or 460 V AC (3‑phase, 60 Hz)
