NEW EDWARDS 55 Ton Ironworker 8 ROUND PUNCHES AND DIES TO 1 1/16" 230v 3 phase or single phase FOR $595.00

Description

Four Available Workstations
Universal Open Tooling Station
Electric Stroke Control
ANSI B11.5-1988R(02) Compliant
ETL/UL Approved Controls

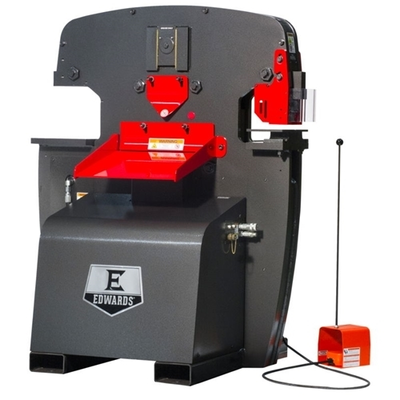

The Edwards 55 Ton Ironworker is well suited to fit the needs of any fab shop, large or small. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a universal open tooling station designed to accept optional Tooling Accessories.

The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.

Ultimate Productivity Packs

Designed to improve overall Ironworker Performance

FLEXIBILITY
Contains Punches and Dies to produce the following size round holes: 3/16". 5/16", 7/16", 1/2", 9/16", 5/8", 11/16", 13/16", 15/16", and 1-1/16"
The Back Gauge utilizes a positive stop attachment that is fitted to the back of the Ironworker ensuing accurate shearing out to 48"

PRODUCTIVITY
Punch and Die Storage Tray easily mounts to either side of the output shoot
The 48" Back Gauge speeds up production on repeatable cuts by providing an adjustable stop for the flat bar shear and angle shear.
The Fabricator’s protractor increase accuracy on the punch and flat bar shear workstations by guiding your work piece and is gauged at 15° increments through 180° featuring a straight edge and reversible design
Coper Notcher Gauging Table Kit includes adjustable fences and handles quickly and easily guides your material for perfect repeatable actions
A Gauging table kit includes adjustable fences and handles quickly and easily guide your material for perfect repeatable actions

SAFETY
Punch diameter must meet or exceed the thickness of your material
Super bright LED light with M12 connections has a powerful magnetic base allowing users to attach the light to any Ironworker surface and move as needed.
PERFORMANCE
Made of durable steel for long life
Long lasting averages between 3,000 and 5,000 impacts
The Quick change punch assembly accepts both standard and oversize punch and die sets
The 3/8” thick, 12” x 16” gauging table that adds precision to your punch workstation
