NEW 50 TON EDWARDS HYDRAULIC IRONWORKER WITH 230v 3 phase single phase add $860.00
Have one to sell?
$14,930.00 USD
Or as low as $298.60 USD/month over 60 months
ConditionNew
1 available
New
Or as low as $298.60 USD/month over 60 months
Compact and Versatile
Four Available Workstations
Punch Assembly Designed for Optional Tooling
Dedicated Coper Notcher Station
Electric Stroke Control
ANSI B11.5-1988R(02) Compliant
ETL/UL Approved Controls

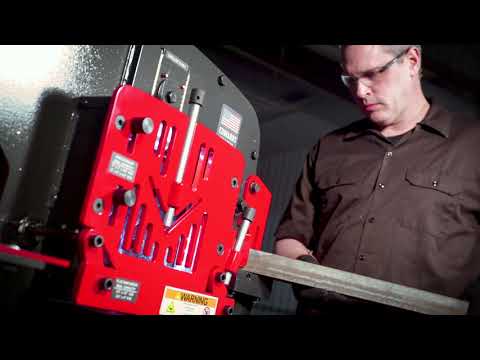

The Edwards 50 Ton Ironworker is ideal for the small shop that needs a powerful, versatile tool for all kinds of tasks.
Standard features include a
Punch Assembly with Pedestal Die Table,
Flat Bar Shear,
Angle Shear and a dedicated Coper Notcher station.
The Punch Assembly quickly converts to an open tooling station designed to accept optional Tooling Accessories.
The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press. Please ask about the additional cost
PUNCH
Rating 50 Tons
Max. Capacity 1" Dia. in 5/8" A36
(65,000 PSI Tensile)
Stroke 1-7/8"
Throat Depth 7"
Open Height 8-1/8"
Shut Height 6-1/4"
Work Height 36-9/16"
FLAT BAR SHEAR
Max. Capacity 1/2" x 10"
3/4" x 4"
Max. Round 3/4"
Max. Square 3/4"
Work Height 34-1/2"
ANGLE SHEAR
Max. Capacity 3" x 3" x 3/8"
4" x 4" x 1/4"
Work Height 39-7/8"
COPER NOTCHER
Max. Capacity 2" x 3" x 5/16"
Work Height 39-1/2"
GENERAL SPECIFICATIONS
Standard Motor 5 HP 3~ 208 V or 230 V
1725 RPM 14 A
Optional Motors 5 HP 3~ 460 V
1725 RPM 7 A
5 HP 3~ 575 V
1725 RPM 6 A
5 HP 1~ 230 V
1725 RPM 23 A
Hydraulic Pump 3-1/2 GPM - 1 Stage
Valve Pressure 2500 PSI
Reservoir 7 Gallons
Cylinder 2-1/2" Ram
DIMENSIONS
Height 54-1/2"
Width 36-3/4"
Depth 36-1/8"
Shipping Weight 2020 lb
10 ROUND PUNCH AND DIE
