NEW IEMCA KID 80 MAGAZINE TYPE BAR LOADER
Have one to sell?
$19,990.00 USD
Or as low as $399.80 USD/month over 60 months
ConditionNew
1 available
New
Or as low as $399.80 USD/month over 60 months

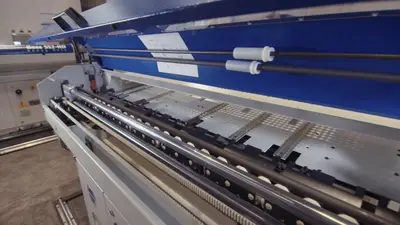

The KID 80+ is a short automatic high-performance bar feeder, ideal for applications on CNC lathes with fixed headstock, also equipped with counter spindle. The KID 80+ is capable of machining short bars with diameters from 5 to 80 mm, and lengths from 90 to 1,615 mm. It is designed to meet the needs of those looking for accurate machining short bars, versatility at frequent changing of machining and reduced space occupied on the ground.
The KID 80+ is simple to use, robust and features sub-spindle mode functionality.
Capacity 3"
Bar Length 5'
General Specifications As Per Brochure:
Bar Size Capacity: 5mm (.197") - 80mm (3.150")
Bar Length Capacity: Lathe spindle length
Maximum Bar Length: 63.6"
Minimum Bar Length: 19.7"
Magazine Capacity: 23.5 linear inches
Bar Pusher 1: 12mm for .5" to 1" diameter bar
Bar Pusher 2: 21mm for 1" to 3.125" diameter bar
Operating Voltage: 230V AC 3 Phase (400V available)
Control Voltage: 24 Volts DC
Total Power Required: 1.875 kVA/1.5 kW
Compressed Air Required: None
Feeding Speed: 20"/sec (adjustable)
Facing: Accuracy +/- .020"
Bar Change Time: 50 seconds for 20" bar
Bar Straightness Requirement: Industry standard
Bar Feeder Shipping Weight: 1600 lbs.
Color: RAL 5002 Blue, RAL 7035 Light Gray
Standard Equipment Includes:
Custom Electrical Cable Package & Interface Kit
Axial Displacement Track Z Axis (X axis available on request)
2 Bar Pushers
Guide Channel for round/hex bar
Prices (subject to change without notice)
Bar Feeder
Bar feeder includes: standard electrical and mechanical interface to the
lathe, Single Rack magazine, 2 Bar Pushers, Axial Shifting Device (Z) and 7"
Touch Screen Panel
Accessories
Tall stands $990
Category III interface (Dual Channel Safety Circuit Protection) $1,490
Special adaptation kit (Required for some lathes) $1,990
Options
Spindle liner $450
Kit for additional status lights $80
Large bar kit (for 15 - 90 mm (5/8" - 3" 1/2) bar diameter) $890
Short bar kit (minimum length 3,5") $990
Square stock roller replacement kit 290
V-channel extension 390
Transversal shifting device (X) $490
Kit for Industry 4.0
