Or as low as $3,380.00 USD/month over 60 months
2 YEAR ONSITE WARRANTY

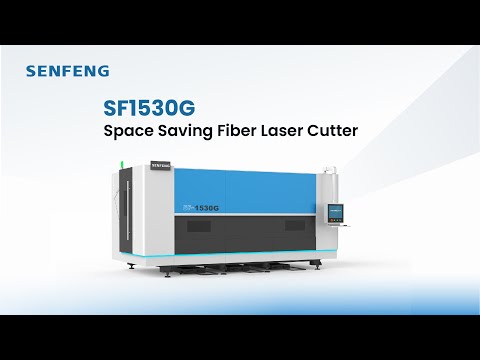

SMALLER FOOTPRINT
Fully Surrounded Structure
Partitioned Smoke Exhaust System
Single Platform and Small Footprint
Pull-out Platform
CNC Cutting System-FSCUT2000
EQUIPPED WITH
◆ Water Cooler
◆ Transformer
◆ Stabilizer
◆ Fan
◆Laser Source
◆2-year Warranty
◆ Free Installation Training
Laser Power 3kW
Work Area 5 ′ X 10 ′
Positioning Accuracy ±0.05mm
Repositioning Accuracy ±0.02mm
Max Speed 262’/min
Max Load of Platform 1500 LBS
EQUIPPED Power Supply Three-phase 380V, 50Hz/60Hz TRANSFORMER FOR 230V AND 440 OR 480 V
Outline Size (mm) 191″ * 159″ * 82″
SOFTWARE Technical Data
TOUCHSCREEN CONTROL
Model
FSCUT2000E
Control card BMC228A
I/O terminal board BCL4566E
Motor control signal EtherCAT
Common Output 24 channels
Max load of a single channel: DC 24V/700mA
Software
CypCutE
Interface
PCIE bus, X4 and up
Power Supply 24V DC/2A
Work Environment Temperature: 0-60℃
Humidity: 10%-90% RH(no condensation)
Dedicated Output
2 DA: 0~10V，12bit, 50mA
2 PWM: 5V/24V, 5KHz (0.3%)
Common Input
27 channels:
IN1-IN24，active low，0~15V
IN25-IN27，active high，24~8V
Benefits
Technique
Frame Border Contour: Frame profiled plate
One-Path FlyCut: Supported for all figures to improve efficiency
Circle Center: Auto center on circular plate and start cutting
Pallet Changer: Unloading while cutting, keep safe and efficient
Control
Path accuracy 0.01mm, positioning accuracy 0.001 mm, repetitive positioning accuracy 0.002 mm.
Unlimited cutting/travel speed
Maximum acceleration 2G
Locate the cutting position and automatically exhaust the smoke in different areas to make the smoke removal more efficient.
Unlike others double-platform cutters, the single-platform structure has a smaller footprint.
Convenient for loading and unloading while meeting the needs of conventional sheet metal processing.
FSCUT2000 is a full-featured open-loop control system specially launched for the sheet metal processing industry. It has the characteristics of stability and reliability, convenient deployment, easy debugging, safe production, rich functions, and excellent performance; it supports and provides modular, personalized, automated, and information-based solutions to realize memory caching, and has a powerful cutting process database for different thicknesses and plates.
