NEW GEKA PIRANHA SUNRISE 70 TON HYDRAULIC IRONWORKER 220V SINGLE PHASE !!! 3 YEAR WARRANTY
Have one to sell?
$18,350.00 USD
Or as low as $367.00 USD/month over 60 months
ConditionNew
1 available
New
Or as low as $367.00 USD/month over 60 months

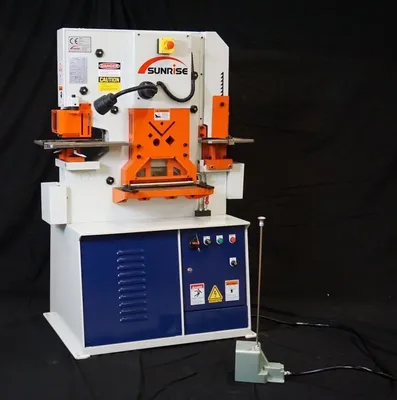

SUNRISE K-Series Ironworkers range in capacities from 50 to 95 Tons and feature a vertical cylinder design. The K-series ironworkers are built with the SUNRISE tradition of well-engineered products for high power, quality, and reliability at an incredible price.
The low-pressure setting for tool change and spotting provides maximum operator safety. The quick, fully adjustable cylinder stroke and optional deep throat enable mounting a wide range of special equipment such as press brakes, vee-notchers, custom tooling, and more.
The large punching base with the “T-slots” provides a solid base for securing the punch tooling, as well as a wide range of optional and custom-designed tooling.
SUNRISE ironworkers offer the lowest cost of ownership among leading ironworker brands due to the bronze bushings and gibings, multi-sided blades, and the highest quality components as well a standard three-year parts warranty.
Sunrise IW-66K Capacities
Punch: 70 Tons – 7/8″ in 3/4″
Throat: 7″
Angle Shear: 4 x 4″ x 3/8″
Plate Shear: 14″ x 5/8″ with Standard Hydraulic Hold-Down for all Shearing Functions!
Notcher: 2″ x 3-1/2″ x 5/16″
HP: 7.5
Power Requirements: Single Phase | 230V/1Ph
Machine Size: 47 x 30 x 64″ – 2925#
Single Phase Power
Single Cylinder – Vertical Design
Five fully integrated working stations
Angle shear with no material loss cut and four-edge blades
Heavy-duty adjustable punch stripper with visibility window
Hydraulic hold-down for all shearing functions.
SUNRISE Ironworkers include, as standard, the most complete set of features of any Ironworker brand:
40″ Touch-and-Cut Electric Back Gauge (Optional extensions to 12′ available)
Machined Punch Gauge Table with X-Y Positioning System
Machined Notcher Gauge Table with X-Y Positioning
LED Magnetic-Base Work Light
Set of 11 Punches & Dies from American Punch – 3/8″ – 1-1/2″
1.5″ capacity die block with large, swing-away stripper
Complete tool kit with Manual, CAD Parts Drawings, Electrical and Hydraulic Schematics printed and loaded on a USB
Full tank of Hydraulic Oil
HD Start-Up Video including safety, maintenance, and operation – Including QR codes to easily access on the side of each machine.
