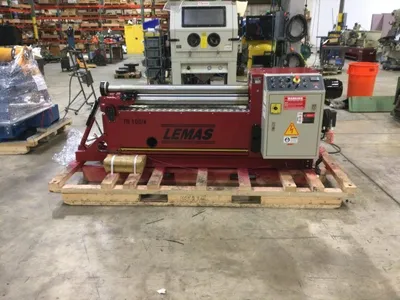

NEW LEMAS, PIRANHA ROUNDO 11 GA X 4' PLATE ROLL ........ .. INCLUDES CONE ROLLING ATTACHMENT......2 YEAR WARRANTY
Have one to sell?
$23,150.00 USD
Or as low as $463.00 USD/month over 60 months
ConditionNew
1 available
New
Or as low as $463.00 USD/month over 60 months
LEMAS has been distributing metal fabricating machinery in the United States for over 20 years including hundreds of plate bending rolls delivered since 2001.
LEMAS specializes in sheet metal fabricating equipment including hydraulic plate bending rolls delivering thousands of machines to satisfied customers around the world. Over 50 years of continuous operations have provided valuable experience and a solid foundation in the competitive global market. Innovation, quality, value and service are what LEMAS products represent around the world.
LEMAS 3-Roll initial-pinch bending rolls feature hydraulic adjustment of the bending roll and the lower pinch roll with separate convenient pinch gap indicator. In addition, the rear bending roll is hydraulically tiltable for cone rolling, and the hydraulic drop end makes it simple to remove the completed cylinder from the rolls.
Sumitomo Cyclo® 6000 gear-less speed reducers, featured on all LEMAS plate rolls, uses a unique epicycloidal design superior to conventional speed reducers using common tooth gears. Unlike teeth-style gears with limited contact points, a Cyclo has two-thirds of its reduction components in contact at all times. This design enables Cyclo speed reducers and gear-motors to withstand shock loads exceeding 500% of their ratings, and provide exceptional performance, reliability and long life in the most severe applications.
Other standard features include Direct-Drive Design using no belts or chains, cone rolling attachment, rolls heat treated to 50Rc, digital readouts for positioning rear bending roll, and much more.
Rolling Capacity: 4′ x 11 Ga. (Typical Mild Steel – 36 KSI Yield)
Diameter of all Rolls: 3.93″
Rolling Speed: – approximately 16′ per minute
Motor Power: 2 HP drive motor; 1 HP hydraulic system motor
Voltages: 230V/3-Phase or 480V/3-Phase
Approximate Weight: 2,200 pounds
Approximate Dimensions: 85″ x 33″ x 37″
Features on LEMAS 3-Roll Machines:
Direct-Drive Design using no belts or chains -Less maintenance, better performance
Spherical roller bearings on all rolls
Grooves for 1/4”, 3/8”, 1/2” round bar
Hydraulically powered bending roll – No manual adjustment needed
Pinch gap indicator – Set the perfect roll gap every time with no guessing.
Power tilting side bending roll for cone rolling – No need to manual adjust for cone bending
Cone bending attachment – Already integrated for your cone bending needs

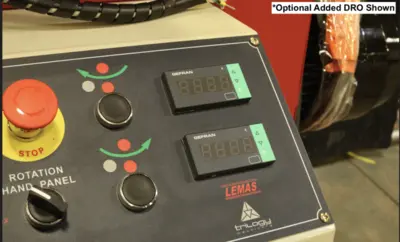

Control panel mounted at machine with digital readout for position of rear bending roll – All machine controls easily located.
Hydraulically operated drop-end for quick removal of rolled product – Easy open allows you to easily slide out finished part
Forward/Reverse rotation controls – Ability to walk around entire machine while controlling rotation
Upper and lower pinch rolls driven
All rolls heat treated to 50 Rc – Keeping your rolls in peak condition as long as possible
Sumitomo Cyclo® 6000 gear-less speed reducers – The hardest working in the industry.
Manual tilt of the lower pinch roll
Emergency stop cable
Hydraulic oil, tools, technical manual
