BODOR U10 5 AXIS STRUCTURAL BEAM PROCESSING FIBER LASER ....... BROCHURE ATTACHED ADD OPTIONAL NITROGEN GENERATOR REQUEST A QUOTE
Have one to sell?
ConditionNew
1 available
New

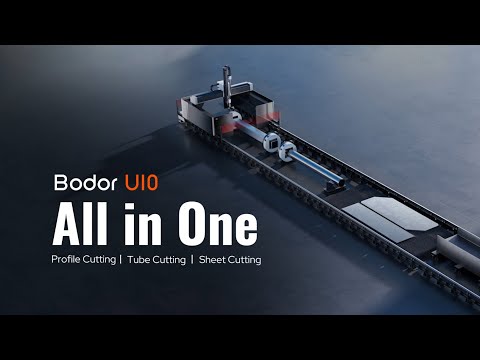

Multi-Material and Multi-Benefit Integration Comprehensive Solution
ADD OPTIONAL NITROGEN GENERATOR REQUEST A QUOTE

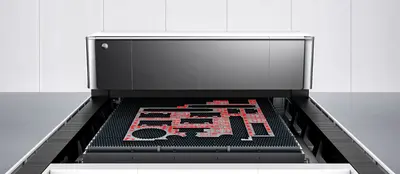

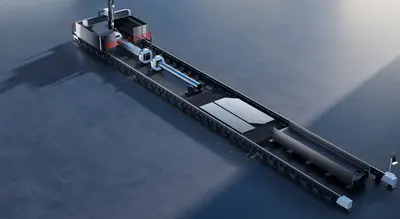

The U10 supports versatile processing capabilities for profiles, tubes, and metal sheets, allowing seamless handling of diverse steel structures.
Intelligent Processing
Equipped with real-time deviation correction, the U10 ensures accurate processing, reducing the need for manual adjustments and the risk of laser head collisions.
Multiple Compatibilities

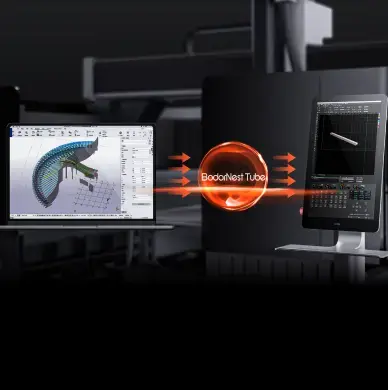

With multiple compatibilities for cutting foundations and Tekla drawings, the U10 optimizes workflow, significantly reducing working costs.
Processing Range(Profile) 100mm × 100mm- 1500mm × 600mm
Processing Range(Sheet-Straight Cutting) 3200mm×28000mm
Processing Range(Sheet-Bevel Cutting) 2800mm×28000mm

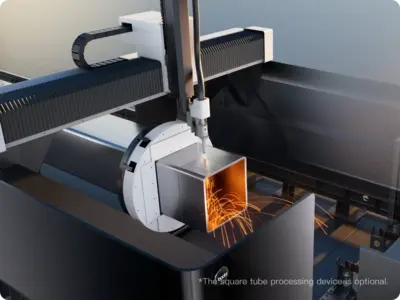

Processing Range(Square+Round Tube) 200mm-850mm
Processing Range(Round Tube Only) φ100mm-φ1200mm
Processing Length ≤28000mm
Powers 6000-20000W
Overall Dimensions 33900 mm × 5030 mm × 4100mm

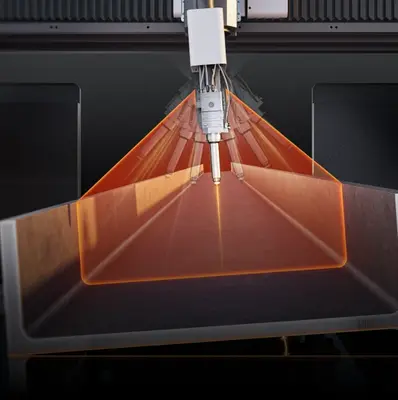

Bevel Cutting
Fly Cutting
Intelligent Deviation Correction
*All parameters on this page are based on testing by Bodor Laser Laboratory
One-Stop Solution

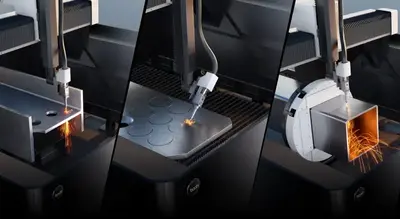

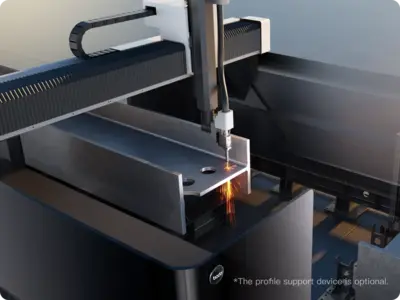

U10 can process profiles with widths up to 1500mm, heights up to 600mm, and lengths up to 28000mm. Whether standard or special-shaped profiles, it can provide one-stop processing for perforation, beveling, notching, marking, and cutting.
Multiple Compatibilities
With multiple compatibilities for cutting foundations and Tekla drawings, the U10 optimizes workflow, significantly reducing working costs.
Processing Range(Profile) 100mm × 100mm- 1500mm × 600mm
Processing Range(Sheet-Straight Cutting) 3200mm×28000mm
Processing Range(Sheet-Bevel Cutting) 2800mm×28000mm
Processing Range(Square+Round Tube) 200mm-850mm
Processing Range(Round Tube Only) φ100mm-φ1200mm
Processing Length ≤28000mm
Powers 6000-20000W
Overall Dimensions 33900 mm × 5030 mm × 4100mm
Bevel Cutting
Fly Cutting
Intelligent Deviation Correction
*All parameters on this page are based on testing by Bodor Laser Laboratory
