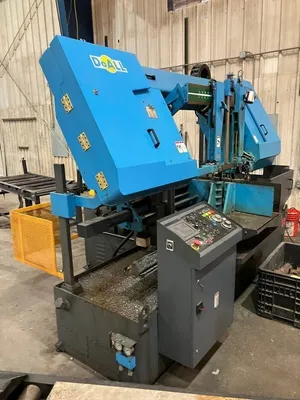

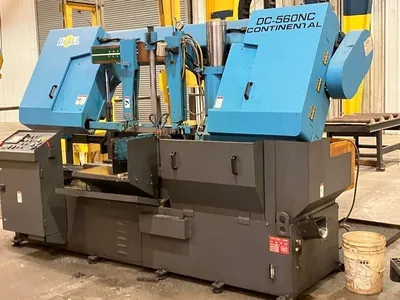

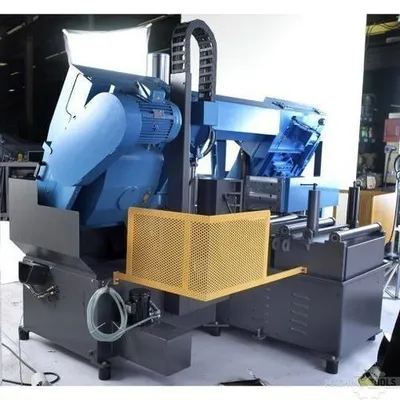

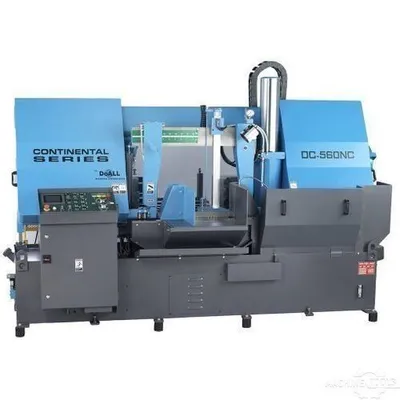

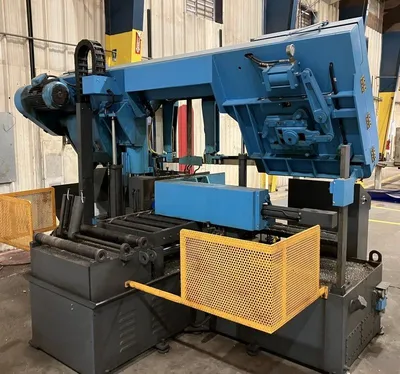

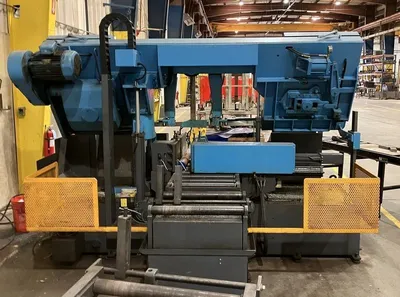

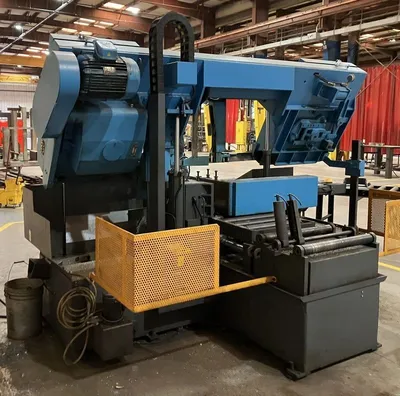

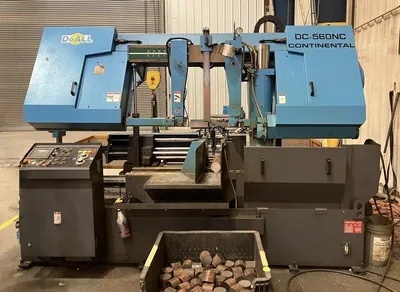

2023 DoAll DC-560NC Fully Automated Dual-Column Horizontal Band Saw, HIGH PRODUCTION SAW
Have one to sell?
$59,225.00 USD
Or as low as $1,184.50 USD/month over 60 months
ConditionUsed
1 available
Or as low as $1,184.50 USD/month over 60 months
I HAVE THE ORIGINAL INVOICE The DC-560NC Continental Series™ by DoALL is designed for cutting a wide range of metals on a production basis. It is fully automated and controlled by a programmable logic controller (PLC) with up to 20 pre-defined parameters – including batching -- to increase productivity and reduce the cost-per-production unit.
All operations are hydraulically driven to improve accuracy and service life of the band saw. The DoALL Continental Series™ has been manufactured and sold for many years, making it a dependable and reliable machine for the most demanding environments.
Machine Capacity: w 24” x h 22″ (610mm x 560mm)
Machine Capacity Round: 22" (560mm)
Production Level: High
Standard Features: High Efficiency Transmission, Touch Screen Controls and an Underslung Indexer System
The DC-560NC Continental Series™ by DoALL is designed for cutting a wide range of metals on a production basis. It is fully automated and controlled by a programmable logic controller (PLC) with up to 20 pre-defined parameters – including batching -- to increase productivity and reduce the cost-per-production unit.
All operations are hydraulically driven to improve accuracy and service life of the band saw. The DoALL Continental Series™ has been manufactured and sold for many years, making it a dependable and reliable machine for the most demanding environments.
Machine Details & Specs:

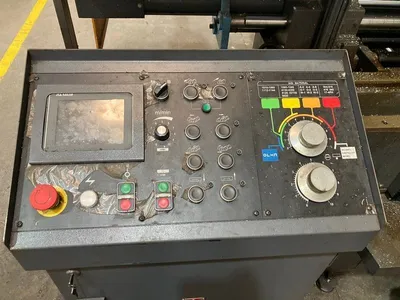

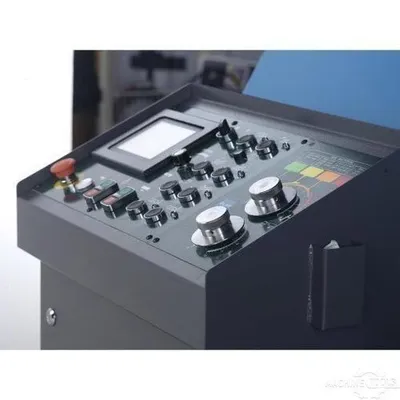

Touch Screen Control
Easy operator input. 20 Job storage with batching capabilities. Control is multi-lingual for today's workforce. Will display error message when incorrect entry is made. Easy switching between imperial or metric units.
High-Efficiency Transmission
High-efficiency worm gear box built to decrease wear and transmit full torque to the saw blade. Double wide “V” belt to avoid slipping, transmitting full motor power to the transmission.
Hydraulic Chip Conveyor
Adjustable speed auger style conveyor allows for coolant drain from chips before extraction.

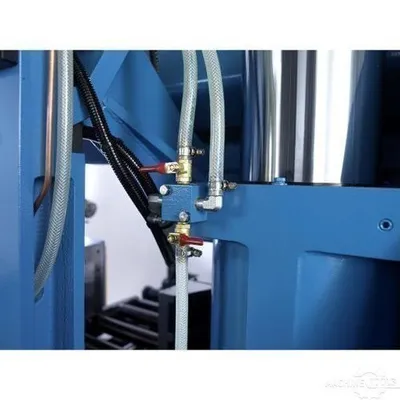

Coolant Thru Carbide Faced Saw Guide Inserts
Supplies coolant to the blade evenly before and after the cut creating straighter cuts and allowing longer blade life due to coolant being supplied at the tooth tip.
Efficiently Designed Hydraulic System
Engineered low-pressure system allows for a smoother and quieter operation which aids in longer component life and easy accessibility for maintenance.
Band Wheels

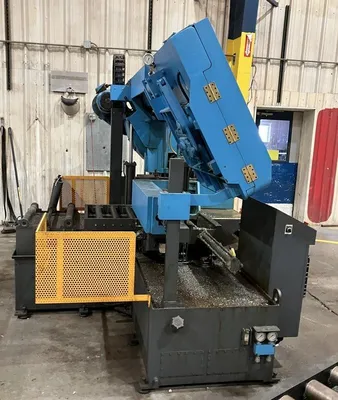

30 Degree lay back head design minimizes band twist which causes band fatigue and also allows a smaller foot print. Flange cast steel wheels insure band tracking to prevent tooth set lost.
Underslung Indexer System
Reduces friction when indexing heavier or rough surface material by the use of rollers allowing for smoother material movements.
Multi-step Full Stroke Vises with Split Front Vise and Variable Vise Pressure
Shorter hydraulic cylinders reduce the overall footprint combining the advantage of rack and full stroke. Split front vice clamps on both sides of the blade reducing vibration and remnant length. Variable Vise Pressure will prevent distortion in thin wall tubing and extrusions.
Hydraulic Blade Tension
Eliminates possible error of over/under-tightening the band for maximum cutting rates and band life.

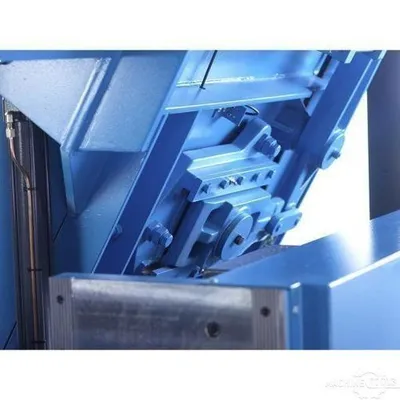

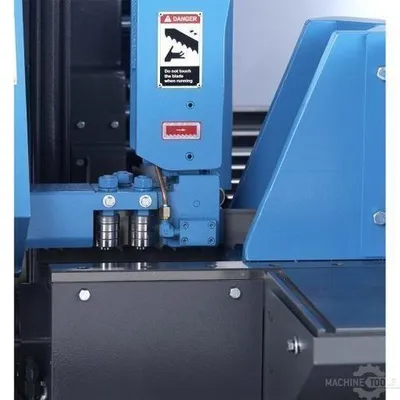

Back-up Bearing/Inserts
Supports the back of the saw band allowing the creation of band preload which aids in reducing vibration while cutting and increasing blade life.
Retractable Shuttle Type Index Vise
Both jaws retract when vise is opened to accommodate the movement of crooked stock increasing accuracy and repeatability.
Magnetic Scale for Indexer
The scale which creates indexing accuracy is protected from dirt and oil build up insuring its long life.
Nesting Fixtures
Plug-n-play vertical hold-down clamp assemblies allow the operator to perform multiple-piece cutting to increase productivity.
Warranty
One-year parts and service subject to the terms and conditions. 10-year manufacturer’s warranty available (Cut Above Lifetime Warranty).
Machine specs:
Saw Blade:
Width x Length - 2" x 260"
Band Drive:
Motor HP - 10 Hp
Band Speed - 52-430 fpm
Band Tension - Hydraulic
Hydraulic System:
Motor Hp - 3 Hp
Reservoir Size - 34 Gallon
Coolant System:
Flood coolant
Motor HP - 1/4 HP
Reservoir Size - 37 Gallons
Indexer:
Length per Stroke - 15.75"
Maximum Index Strokes Length - 141.75"
Remnant Length - 7.875" (non-bundle)
Floor Space Dimensions:
W x L X H - 127" x 84" x 85"
Material Pass Height - 33.5"
Machine Weight - 9923 lbs.

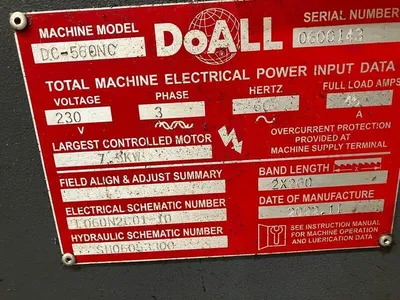

Electrical
Voltage Requirement - 230V-60Hz-3ph, Wye configuration
Total Amp Draw (FLA) - 46 Amps
Optional Accessories
