2016 Torchmate X PRO 6' x 14' Plasma Cutting System, Burny Phantom ST II Controller, Cuts up to 2"
Have one to sell?
$69,550.00 USD
Or as low as $1,391.00 USD/month over 60 months
ConditionUsed
1 available
Or as low as $1,391.00 USD/month over 60 months
ORIGINAL INVOICE ATTACHED The Torchmate X PRO CNC plasma-cutting table is Lincoln Electric’s industrial answer to shape cutting. Its robust design and heavy-duty components are outfitted in two forms: as gantry kits and fully built units. Lincoln Electric Cutting Systems offers onsite installation and training as an option on all systems. As with any cutting system, site preparation by the customer, such as grounding, electrical, etc. is required for the CNC cutting table.
Lincoln Electric’s proprietary FineLine® High Definition plasma cutting technology takes the Torchmate X table to an unmatched level in the industry. The rigid construction and engineering behind the gantry supports the most gas-efficient plasma cutter on the market today. Together, the systems provide a dependable, cost-effective, and warrantied plasma-cutting machine that is sure to be out-supported by any other competitor on the market.
Lincoln Electric offers an industry leading 3-year warranty on their plasma cutters, and fully supports the CNC tables with their renown customer service and technical support. With jobs and projects depending on these machines to be constantly running, there is no clearer choice than the 100% Lincoln Electric owned Torchmate X series.

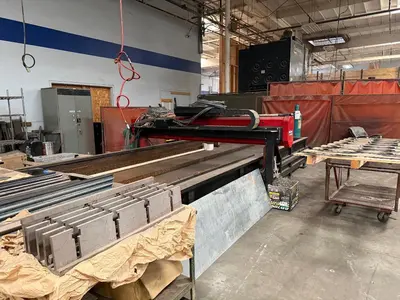

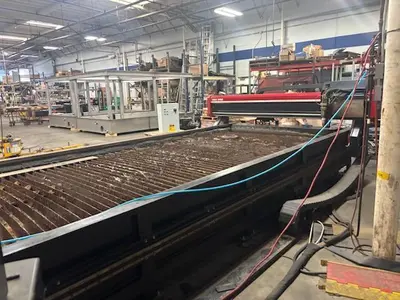

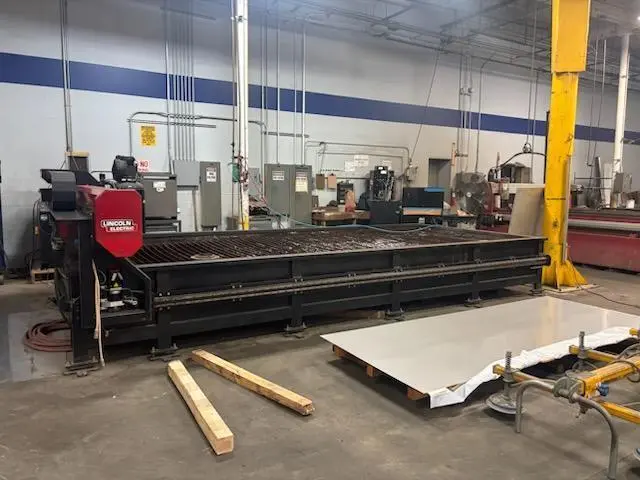

2016 Torchmate X PRO 6ft x 14ft Plasma Cutting System
Complete Turn Key Water Table with Adjustable water height
700 ipm traverse speed/400 ipm cut speed
6' Pro Gantry with Dual X-Axis Drive with Helical Gear
3 Axis Brushless Kollmorgen 400 w AC Servo Motor w/.5" output shaft
35:l Low Backlash Gearboxes
Complete in house testing prior to shipment
Pedestal Mounted Operator Station
CNC CONTROLLER

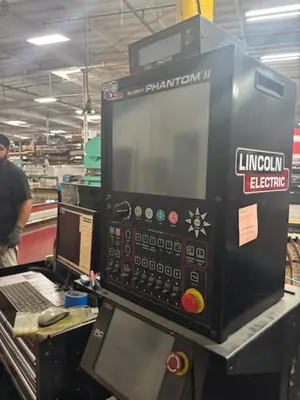

Burny Phantom ST II Controller
PC-based platform designed for 3 axis drives and a plasma focused
operator console mounted within a single integrated cabinet
Utilizes Windows XP Embedded for true multitasking and DXF file
conversion
15" industrial-grade touch screen- works with gloves too
2 GB DDR3 RAM
Full color, interactive graphic display
Advanced Plasma interface integrates automatic gas regulators and the
INOVA Torch Height Control
Quick Plate Alignment compensates for plates that are not aligned
properly on the machine. Virtually drop and cut to save material and time
True Multitasking with XP Embedded allows the new parts to be loaded,
edited, nested, messages to be checked, and monitor consumable life - all
while the machine is cutting
Fast DXF File Conversion accepts direct downloads of CAD/CAM files
Go To (Job Interrupt) allows the interruption of current cutting routine
to cut a new part or recover from power loss, without losing machine
position and scrapping valuable material
Monitor and Track Consumables to maximize consumable life and torch
life by alerting the operator when a consumable change is required
Networking via Wireless or Fiber
Remote Diagnostics
I
DXF/DWG Software plan
Standard Shapes library
Automatic true shape
Software post processor

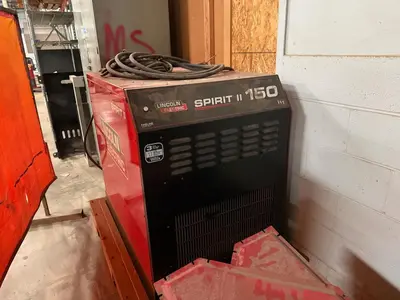

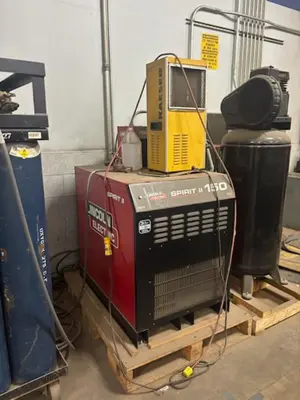

. - l00Yo Duty Cycle at 150 Amps- Automatic Gas Console- Marking and Plasma Cutting with the same consumables
. - Displays torch parts for selected material and thickness- Performs self diagnostics- Extended electrode life through proprietary Hafnium Optimizing Technology
l" Production pierce capacity 1-112" Maximum Cut Capacity (edge start,
with UltraSharp 3/4:I Ratio -Best in the Industry
.
The ultra Sharp cutting process incorporates the 40 years of Bumy and
Kaliburn's combined shape cutting experience to produce superior hole
quality in process covered thickness from .125" to 2" mild steel
Ultra Sharp cuts up to .125"(3mm) on stainless steel
Automatically configures cut parameters to achieve the best hole quality
No limitations for "non-standard" hole sizes
Pre-determined lead ins and lead outs
Best in Class hole cut quality in terms of cylindricity
Hole quality applies to BOTH sides of the plate, not just one.
AUTOMATIC TORCI{ HEIGHT CONTROL
INOVA Torch Height Control by Kaliburn
Fully Programmable microcontroller w/ plasma gas preflow
during IHS
Anti-Collision System to protect the torch for 2" torch body
600ipm maximum retraction speed
DSP servo system is the most advanced voltage control
available
Software digital signal processing setup loop accurate to
+/- 0.4 volts
Precise position control with a set point resolution of 0.001
inch and an arc voltage to 0.01 volt
Pneumatic Safety Switch #Spark Shield
Arc Voltage Control Limiter to prevent torch damage during
kerf crossing
REMOTE
High Speed Intemet needed for remote assistance
TID GANTRY AND WATERBED
TMXPRO GANTRY
.
Heavy wall structural steel gantry, precision planed parallel top to
bottom to 0.001" tolerance
Tool carriage driven by a precision 40mm ball screw with preloaded
anti-backlash nut
Dual enclosed 20mm profile rails with ball bearing cassettes
Tool plate mount for up to four tools with full reach of entire cutting bed

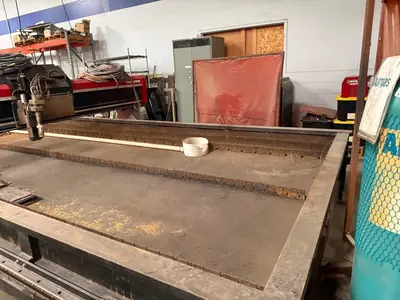

TMX PRO WATERBED
Dual motor design ensures constant alignment of table to gantry and
exceptional motion consistency
Planetary gear boxes with hardened helical spur gears
Pneumatic controlled gear engagement for consistent gear mesh over the
length of the machine
Helical gear rack ensues smooth motion profile and increased load
rating
Self-cleaning hardened V-GROVE rails and self-adjusting rollers
