FOM 2011 BLITZ ALVA, BZ ALVA 500 DUAL HEAD MITRE HIGH SPEED SAW NC --- CLICK ON THE PDF FOR MORE PICTURES
Have one to sell?
$42,000.00 USD
Or as low as $840.00 USD/month over 60 months
ConditionUsed
1 available
Or as low as $840.00 USD/month over 60 months
FOM

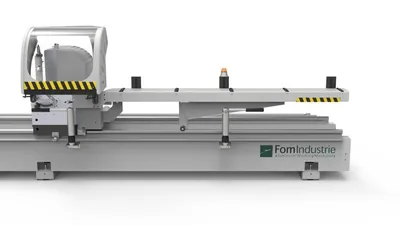

What is Blitz Alva 500 m?
FOM BLITZ ALVA 500 M has been specially designed for the cutting of aluminium or light alloy profile sections. - When workpiece is laid on worktables, it is clamped by two vices operated by a pneumatic system. - Two motor-driven blades, operated by PB’s on control board, come out, cut and retract automatically.
BZ Alva 500 specifications include:
Blade Size: Ø 500 mm tungsten carbide saw blades.
Head Tilting: 90°, 45°, 22.5°, and intermediate angles with pneumatic cylinders.
Motor: Three-phase 3HP (2.2 kW) motor at 2800 rpm.
Voltage: Euro voltage 230/400V 50Hz; 275/480V 60Hz.
Cutting Capacity: Maximum cut between heads is 4 - 5 - 6 m, depending on the version supplied.
Features: Movable head roller table, pneumatic vertical vices, and automatic positioning of the second head.
