Kitamura Medcenter 5AX cnc fanuc 120 atc low hours thru spindle coolant I have original Invoice

Description

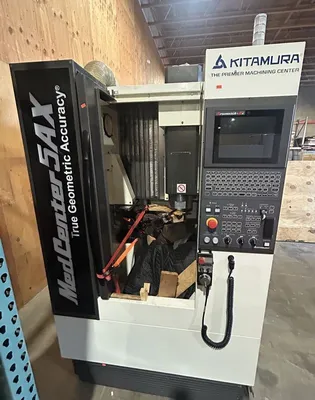

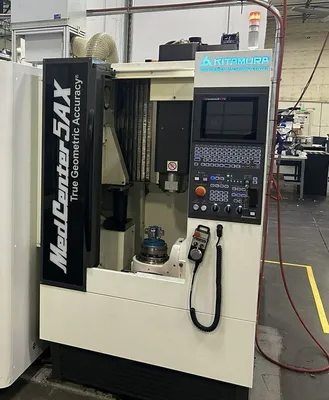

2024 KITAMURA MEDCENTER5AX 5 Axis CNC Vertical Machining Center

Kitamura’s versatile MedCenter5AX is an ultra-high precision, 5-axis simultaneous vertical machining center that offers unparalleled accuracy and speed for expanded machining capability in the machining of highly complex small to medium, multi-sided parts in one set-up. The machine’s maximum stiffness, flexibility, and cutting capability make it an optimal choice for manufacturing precision parts for the medical, aerospace, automotive and telecommunications industries and micro machining.

Automation ready with the ability to field retrofit a 20-station APC and a high performance 120 tool ATC – all in a super compact, space saving footprint, this small 5-axis machining center works overtime to eliminate waste, increase productivity and lower costs.

2024 Kitamura Medcenter5AX Vertical CNC Machining Center

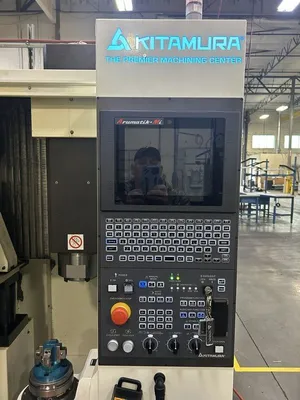

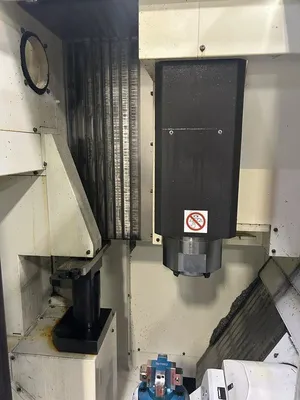

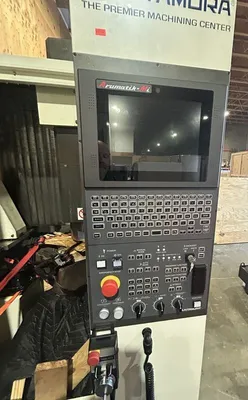

Arumatik Mi Control, 300-30,000 RPM Direct Drive Spindle,

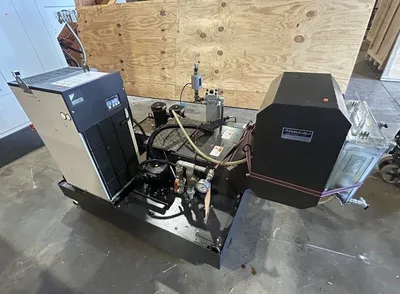

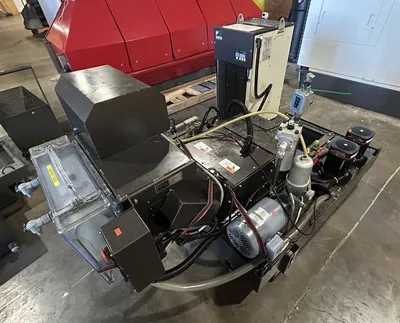

Spindle Oil Cooler,
Renshaw NC4+ Blue F115C Probe,

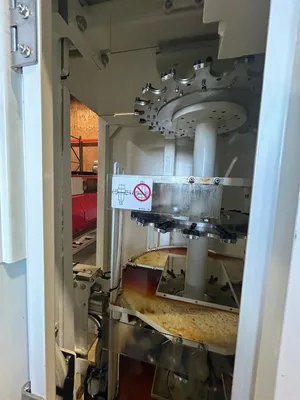

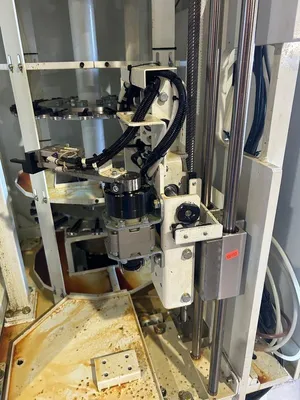

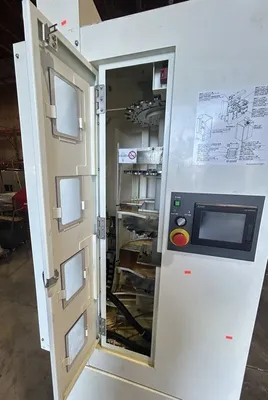

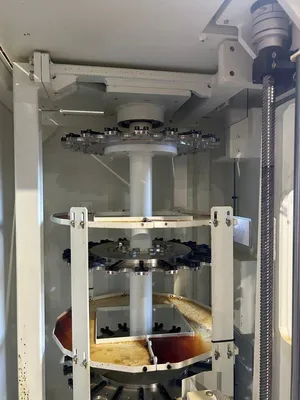

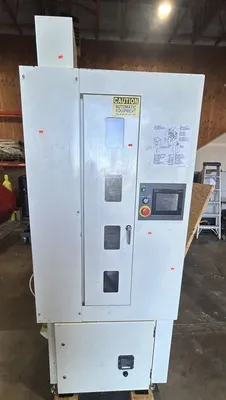

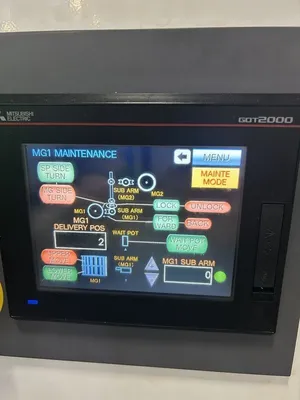

High Capacity 40 Tool ATC w/ 120 ATC Upgrade,
Raptor SP1882 Tombstone w/ (4) Raptor Vices RWP019SS,

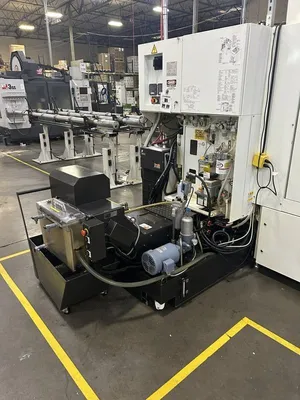

Scraper Type Chip Conveyor, S/N 15086.

Medcenter 5AX machine.
Vertical 5-Axis Machining Center

The MedCenter5AX high speed simultaneous 5-axis vertical machining centers offers unrivaled accuracy in an ultra-compact footprint. It’s the perfect 5-axis CNC for all your smaller complex parts and micro machining.

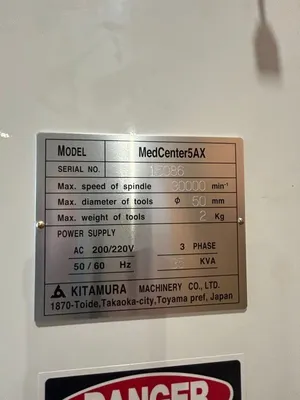

Specifications

Table Size (Ø170mm) Ø6.7″

Travel (X, Y, Z) (254 x 330 x 330mm) 10″ x 13″ x 13″

Travel (A, C) 240° (-120 to +120°), 0 to 360°

Spindle Taper HSK-E40

Spindle Speed 300~30,000 min‾¹

Tool Storage Capacity 120 Tools Optional

Rapid Feed (X,Y x Z) 60m/min (2,362ipm) x 50m/min (1,969ipm)

Rapid Feed (A, C) 100 min‾¹ (36,000 deg/min), 200 min‾¹ (72,000 deg/min)

Power Requirement 35KVA, 200v AC, 3 Phase

VIDEO ON YOU TUBE OF Arumatik Mi Control,

300-30,000 RPM Direct Drive Spindle,
Spindle Oil Cooler,
Renshaw NC4+ Blue F115C Probe,
High Capacity 40 Tool ATC w/ 120 ATC Upgrade,
Raptor SP1882 Tombstone w/ (4) Raptor Vices RWP019SS,
Scraper Type Chip Conveyor, S/N 15086.
