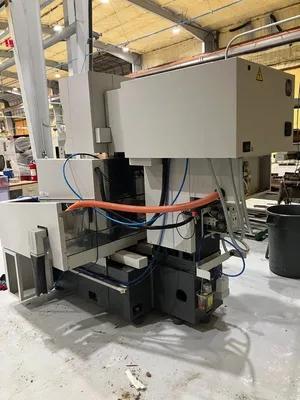

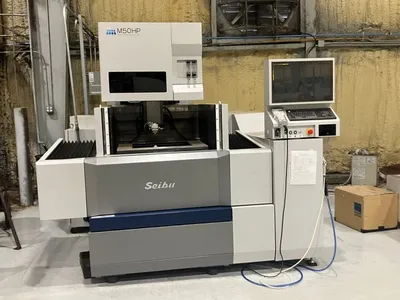

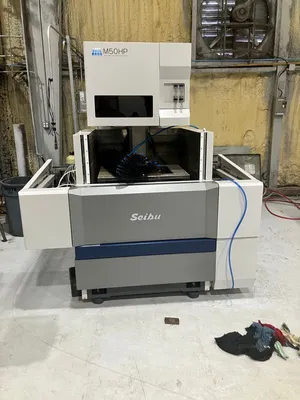

2023 Seibu Wire EDM Model: M50HP, w/ Fanuc Control,

Description

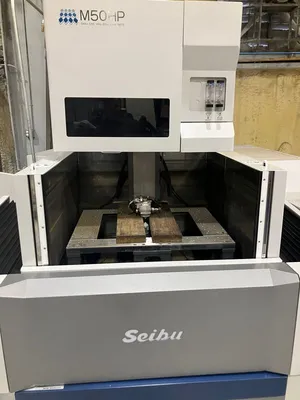

High Precision Wire EDM 19.7×15.8

The 2023 Seibu M50HP is a High Precision Wire EDM designed for various products with ±3μm pitch accuracy, reliable precision machining applications that require stable cutting performance, consistent dimension accuracy and surface finishes. Wire diameter available down to φ0.003inch(0.07mm).

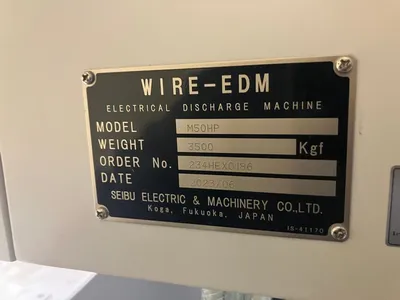

Standard Specifications M50HP
Max. workpiece dimensions W×D×H 33.46 × 28.74 × 11.81inch

Max. workpiece weight 1,763.7lb

Axis travel range X×Y×Z 19.69 × 15.75 × 12.20 inch
U-V axis travel U×V ±2.36× ±2.36inch
Max. taper angle ±10°/work thickness 11.81inch (±45°/1.6inch: Option)

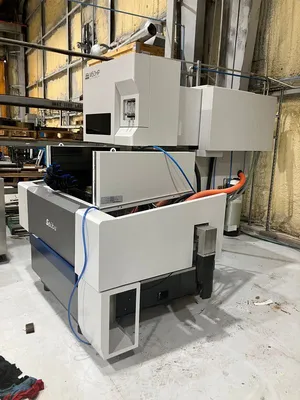

Dimensions
W×D×H 6.28 × 7.41 × 6.68ft
Weight 7275.26lb

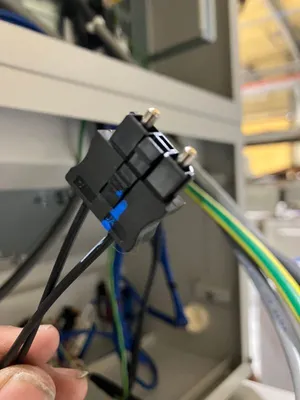

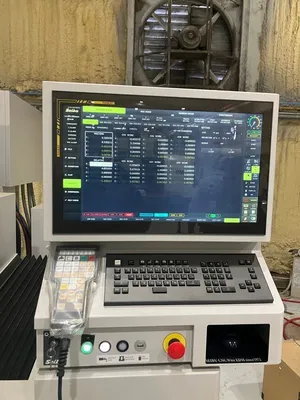

Control device Smart NC
Input system MDI, Ethernet, USB
Display 21.5 inch TFT multi-touch screen
Axis controlled 5 axis (simultaneously 4 axis)
Least input increment 0.01µm
Least command increment 0.01µm
Program memory capacity 1GB

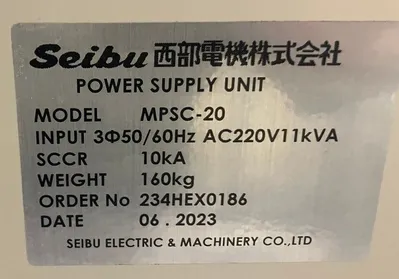

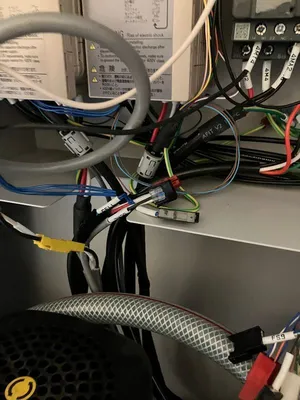

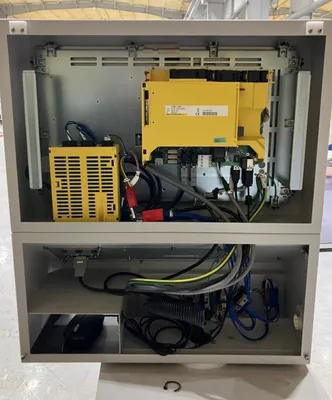

Power Supply MPSC-20
Input power source 3-phase 200V/220V±10%
11 kVA, 50/60Hz
Weight 352.74lb

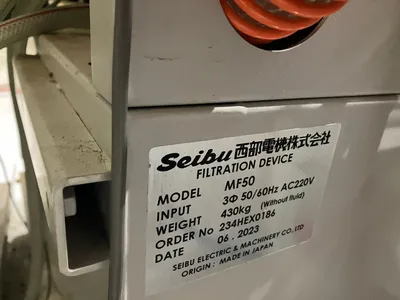

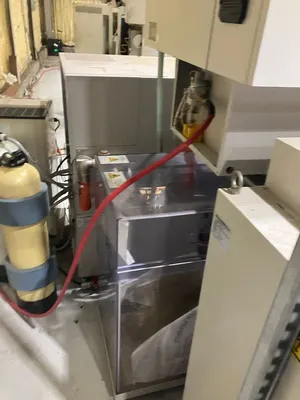

Filtration device MF50
Tank capacity 195.49gal
Filter element 4 paper filters
Φ13.39 ×11.81inch
Deionizer Ion exchange resign 5.28gal
Weight 947.99lb
Wire diameter : Φ0.003 to Φ0.012inch

(Φ0.010inch is standard
