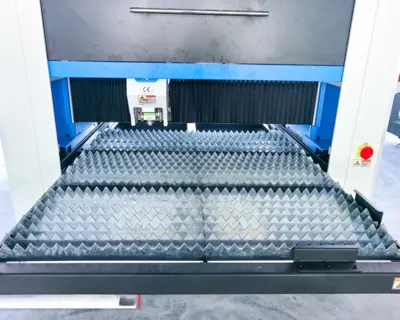

BESCUTTER CUBE 1.5KW Fiber Laser, 2020, Low Hours , 51 x 51
Have one to sell?
$54,000.00 USD
Or as low as $1,080.00 USD/month over 60 months
ConditionUsed
1 available
Or as low as $1,080.00 USD/month over 60 months
SMART CUBE SERIES
The BesCutter Smart Cube is our compact fiber laser cutting series, built for precision, safety, and efficiency. This fully enclosed machine is ideal for shops requiring high-accuracy cutting in a space-saving design. Available with laser power options ranging from 1500W to 6000W, the Smart Cube offers fast, reliable, and efficient metal cutting, making it an excellent choice for industrial applications.
The machine ensures precision and quality control. Its rigid welded frame and aluminum gantry provide stability and durability, while the Cypcut control system ensures seamless operation.
Additionally, Bescutter’s US-based support guarantees quick troubleshooting and assistance whenever needed.
Power that fits your needs:
. 1500W laser power 3/8" Capacity
Additional Features:
. Fully enclosed safety design for operator protection and a clean work environment.
. Auto-focus laser head ensures consistent cut quality across all thicknesses.
. High-speed operation with a maximum speed of 84m/min..
. High-rigidity aluminum gantry for stability and smooth movement.
MACHINE SPECS
Specification Item Detail
Laser Power 1500W - 6000W
Working Area 51” W x 51” L (1,300 mm x 1,300 mm)
Overall Dimensions 85” L x 91” W x 83”H (2150x2300x2120 mm)
Weight 3,300 lbs (1,500 kg)
Positioning Accuracy ±0.05 mm/m
Repeated Positioning Accuracy ±0.02 mm
Maximum Speed 55”/s (84m/min)
X-Y-Z Servo Motors Y 2 x 1,500W - X 1 x 1,000W - Z 1 x 400W
Electromechanical SCHNEIDER, SMC and etc
Controlling System CYPCUT BCS 100
X-Axis Travel 51” (1,300 mm)
Y-Axis Travel 51” (1,300 mm)
Z-Axis Travel 4” (100 mm)
Laser Resonator Raycus
Laser Head RAYTOOLS
Lubrication System Automatic Lubrication
THE BEST TOOL FOR PROCESSING ALL CUTTING CAPACITIES
Cost-effective
The Smart Cube Fiber Laser Cutting Machine minimizes the need for multiple machines by offering sheet cutting capabilities. It is the optimal choice for best cost-effectiveness.
Easy Cutting
Design parameters and automatic cutting matching help you simplify the cutting process, effortlessly transforming you into a cutting master.
Efficient Production
With fast transmission speed and high-performance bus servo motor delivering leading dynamic performance, the Smart Cube series significantly increases processing efficiency, allowing you to achieve efficient production.
