2022 Tykma Electrox EMS 400 Laser Marking System, Rotary attachment, 24" x 24" Low Hours,
Or as low as $590.00 USD/month over 60 months
Or as low as $590.00 USD/month over 60 months


2022 Tykma Electrox EMS 400 Laser Marking System,
24" x 24" Marking Field,
110/240v/ 1 PH/ 50/60Hz,
w/Optional ZD30 Rotary Device, 2021 TBH TFS500
Plus Fume / Dust Extractor,
EMS400 XYZ features an XY stage, enabling a total marking field of 24” x 24” / 610mm x 610mm while maintaining the use of a standard focal lens. Mark large components in multiple locations or process large trays of components. Standard programmable focal height is controlled via software for automatic focus adjustment between part types. A front vertical pneumatic door with a patented safety system, recessed front, and machine auto mode maximizes ergonomics for high-volume processing. Have large or long parts to process? Class 4 capability for open door marking is possible with our service override key, removable side panels, safety warning lights, and optional laser safety glasses.
Class 1 Safe Floor Standing Full-Size Laser Enclosure

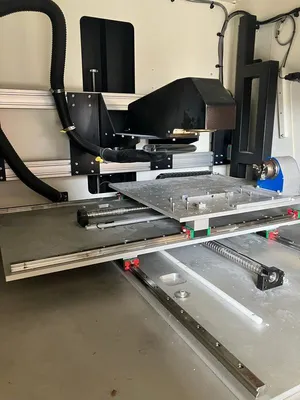

XY Stage with a Total Marking Field of 24” x 24” / 610mm x 610mm
Programmable Focal Height Adjustment
Front Operator Control Panel
Vertical Pneumatic Door with Patented Safety System and Auto Start Mode
Laser Options Include a 20W to 100W MOPA Fiber Laser, 10W UV Laser, or 60W to 100W CO2 Laser
Integrated Windows 10 Pro PC with Monitor, Keyboard, and Mouse on a Gas-Assisted Adjustable Swing Arm
Optional Rotary Devices, Pull-out Part Loading Shelf, and More
Class IV Mode with Interlock Override Key, Removable Side Panels, Warning Lights, and Laser Safety Glasses
Minilase Pro 3 64 Bit Software
Dimensions ( L x W x H ) 1,672mm x 1,504mm x 2,235mm
66″ x 59″ x 88″ (not including monitor arm)
Height with Door Open 2,659mm / 105″
Weight (approx.) 817kg / 1,800lbs
Max Part Size (LxW) 610mm x 610mm / 24″ x 24″
or
599mm x 914mm / 23.6″ x 36″
(with XY stage in static center position)
Laser Focus Control Programmable
Door Type Automatic with Patented Safety
Air Required for Operation 60 – 80 PSI
Available Software Packages Minilase Pro SE
Minilase Pro 3
PC Integrated PC – Windows 10 Professional with i7/8GB RAM/64GB SSD
External Connectors VGA / USB (3) / Diagnostic / Ethernet
Fume Extraction Connection Port Included
Included Accessories Laser Enable Keys (2) / Power Cable / USB Drive with Software Backup / Class 4 Service Override Key
Documentation
(Digital on USB) System Manual / Software Manual/ Laser Parameters Guide / Software Video Tutorials
