Or as low as $1,391.00 USD/month over 60 months

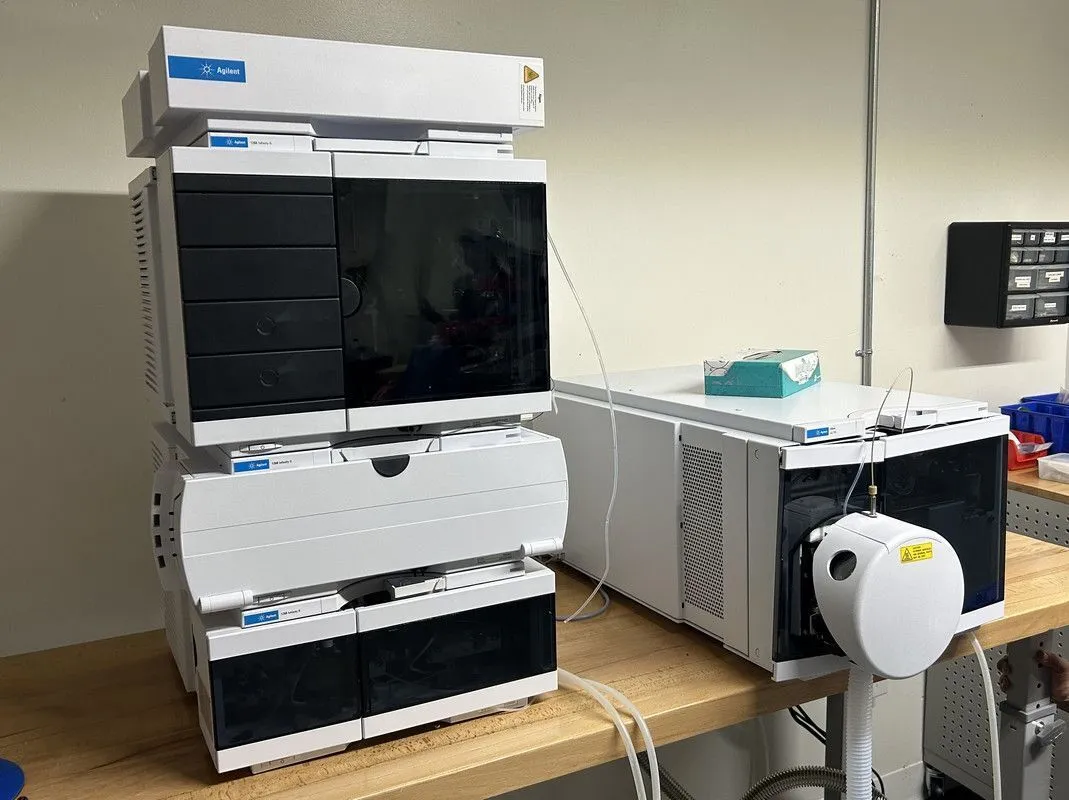

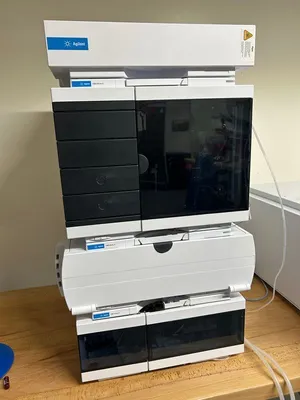

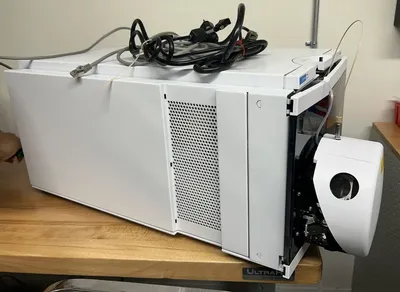

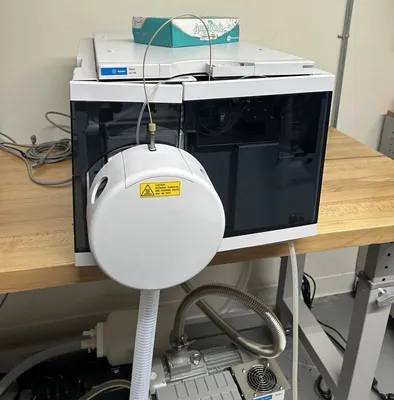

I HAVE THE ORIGINAL INVOICE OVER ATTACHED OVER $230,000.00 !! Ultivo Triple Quadrupole LC/MS
Ultivo is a compact, stackable triple quadrupole LC/MS/MS that eliminates the MS footprint by incorporating the mass spectrometer into the HPLC stack. Representing a transformative approach to triple quadrupole mass spectrometry, Ultivo provides the fit-for-purpose, straightforward, and rugged LC/MS analysis you expect from larger comparable systems, but at a fraction of their size.
Innovations such as the miniature Vortex collision cell, Cyclone ion guide, and VacShield provide users with the sensitivity, robustness, reliability, and performance required for the day-in, day-out challenges of high-throughput sample analysis. With the addition of an ESI-only model, and features geared to assist you with 21 CFR Part 11 compliance, the Ultivo miniature mass spectrometer continues to reshape expectations, re-invent capabilities, and redefine what’s possible when small meets powerful.
Key Design & Performance Features:
Smallest footprint of any LC/TQ on the market, offering a superior price/performance ratio and faster ROI
Multiple ion source options: Agilent Jet Stream (super-heated nitrogen for improved ion generation and desolvation) and traditional ESI
VacShield: Prevents venting during ion injector maintenance, minimizing downtime and boosting efficiency
Cyclone Ion Guide: Compresses the ion beam without signal loss, improving ion transmission and data quality
Miniature Vortex Collision Cell: Enhances ion dissociation, focusing, and rapid clearing between transitions, enabling more MRM transitions/sec, zero crosstalk, and cleaner results
Triggered MRM (tMRM): Combines fast, sensitive quantitation with product ion spectra for screening and confirmation
High-throughput capability: Built for day-to-day, high-volume analysis with robustness and reliability
Collision Cell Clearance Time
<1 ms
Dimensions (WxDxH)
32 cm x 88 cm x 39.5 cm
IDL Sensitivity (negative)
<10 fg chloramphenicolIDL spec only for new LC/MS systems using Agilent Jet Stream, checkout column, 1290 Infinity III LC
IDL Sensitivity (positive)
<10 fg reserpineIDL spec only for new LC/MS systems using Agilent Jet Stream, checkout column, 1290 Infinity III LC
Instrument Health Tracking
Early Maintenance Feedback System
Ion Source
ESIAJSAPCI
MRM Speed
500 MRM transitions/s
Mass Range
m/z 5-1400
Minimum MRM Dwell Time
1 ms
Polarity Switch Speed
< 20 ms
Quad Resolution (FWHM)
Unit = 0.7 DaWide = 1.2 DaWidest = 2.5 Da
