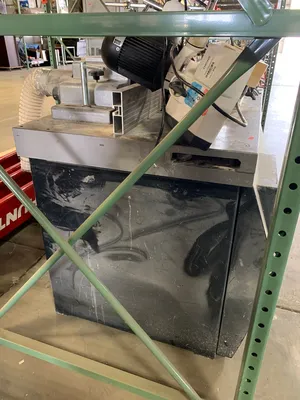

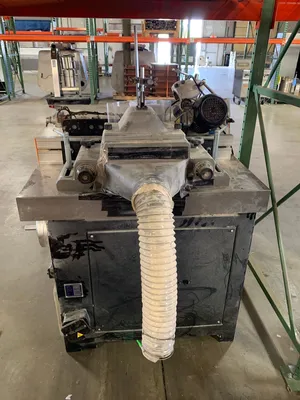

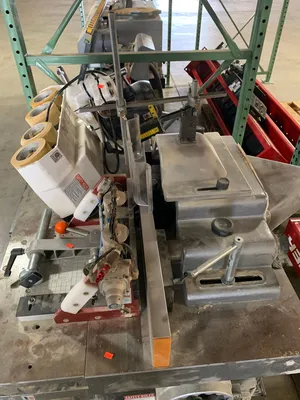

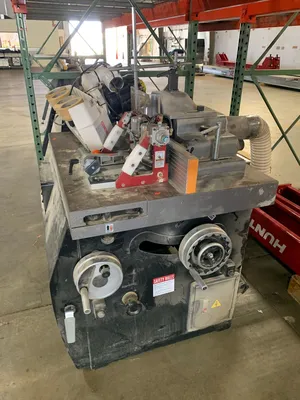

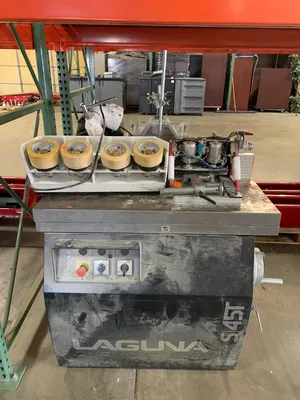

2021 LAGUNA Laguna S|45T Industrial Shaper, SANDER, MANUAL ATTACHED
Have one to sell?
ConditionUsed
1 available
$6,998.00 USD
Or as low as $139.96 USD/month over 60 months
Or as low as $139.96 USD/month over 60 months
S|45T Shaper
The Laguna S|45T Industrial Shaper was designed to be a heavy duty industrial workhorse for commercial applications. Weighing in at over 1000 lbs. it provides an exceptional value for any pro shop. The combination of dynamic electronically balanced spindle with robust solid castings makes the S45T run extremely smooth with absolute minimum vibration.
Features:
Motor: 5HP 1 Phase or 7.5HP 3 Phase
Spindle Tilt: 45° Backwards, 10° Forward
Sliding Table: 10-1/4″ x 39″
Sliding Table Stroke: 18-3/4″
Main Table Incl. S/T: 39-1/2″ x 31-5/8″
Tenoning Table: 13-3/4″ x 18-1/2″
The versatile 45° backward & 10° forward tilting spindle makes using a feeder much easier & keeps the cutting action close to the cast table rather than shaping from the top. Oversized cast table pre-drilled to accept most feeders & featuring sliding table with tenoning as standard. Complete with table & hold down clamp. The sliding table has a full 30” stroke from miter fence to center of spindle. Miter gauge adjusts +/- 45° The interchangeable spindle comes standard as 1-¼″, but other sizes including router collets are available. The fence is made from heavy cast iron & easily adjusts w micro-adjusters for both in/out feed. LED lights display the desired RPM. The S45T is available in both 1 phase & 3 phase. Other voltages also available upon request.
Hold Down Clamp: Included
Tenoning Table Adjustment: 7″ Slide To Spindle
Sliding Table Stroke: 19″ Right of Spindle
Sliding Table Stroke: 19″ Left of Spindle
Sliding Table Far Right: 30″ Spindle To Miter Gauge
Table Height: 35-⅜″
Capacity Under Nut: 5″/125mm
Spindle Stroke: 7″/180mm
Spindle: 1-¼″ Interchangeable
Max Tooling Diameter: 8-¼″/210mm Under Table
Max Tooling Diameter: 13″/335mm Above Table
Rotation: Forward/Reverse
Fence: Micro Adjust, Cast Body
Speeds: 3000/4000/6000/8000/10000 RPM
Readout: LED Lights For Speeds
Readout: Mechanical Tilt & Spindle Height
Feeder: Pre-drilled Left Back Corner
Router Collet: Accepts, Not Included
CAS Components
Weight (Net/Ship): 1056/1350 lbs
Shipping Dimensions (L x W x H): 49″ x 45″ x 50″
Features:
Motor: 5HP 1 Phase or 7.5HP 3 Phase
Spindle Tilt: 45° Backwards, 10° Forward
Sliding Table: 10-1/4″ x 39″
Sliding Table Stroke: 18-3/4″
Main Table Incl. S/T: 39-1/2″ x 31-5/8″
Tenoning Table: 13-3/4″ x 18-1/2″
